Precision Sheet Metal Fabrication: A Strategic Guide for OEM Engineering & Sourcing
In the global OEM landscape, sheet metal fabrication has evolved from basic component forming into a high-precision engineering discipline. For Original Equipment Manufacturers (OEMs) in sectors such as medical devices, telecommunications, and industrial automation, the selection of a fabrication partner directly impacts structural integrity, assembly efficiency, and the Total Cost of Ownership (TCO).
1. Engineering Precision: Beyond the Bend
The transition from a 2D blank to a 3D precision enclosure requires rigorous control over material physics. For OEM applications, achieving consistent repeatability across thousands of units is the primary technical challenge.
- Laser Cutting Dynamics: Utilizing fiber laser technology allows for a reduced Heat Affected Zone (HAZ). This ensures that the material’s structural properties remain intact near the cut edges, which is critical for components requiring subsequent high-precision welding.
- CNC Folding and Bend Allowance: Accuracy in sheet metal is determined by the precise calculation of the K-Factor and Bend Allowance. Advanced CNC press brakes with multi-axis back-gauging systems compensate for material springback and grain direction, ensuring that linear tolerances are maintained within $\pm 0.1$mm to $\pm 0.3$mm, depending on material gauge.
2. DFM: Optimizing for Scalability and Cost
Design for Manufacturability (DFM) is the most effective lever for cost reduction in the OEM supply chain. By analyzing the geometry before production begins, engineering teams can eliminate manufacturing bottlenecks.
- Part Consolidation: Through advanced folding techniques, multiple discrete components can often be integrated into a single complex forming. This reduces the need for manual welding, minimizes heat distortion, and lowers the SKU count for the OEM’s inventory.
- Hole-to-Edge Constraints: Technical oversights, such as placing holes too close to a bend line, result in material deformation. A DFM-led approach ensures that all features are positioned beyond the material’s deformation zone, maintaining the circularity of apertures for hardware insertion.
3. Material Selection and Processing Characteristics
Choosing the correct substrate is a balance between mechanical requirements and processing feasibility.
| Material Type | Technical Advantages | Processing Considerations |
|---|---|---|
| Cold Rolled Steel (CRS) | Excellent surface finish; high dimensional accuracy. | Requires immediate surface treatment (powder coating/plating) to prevent oxidation. |
| Aluminum (5052/6061) | High strength-to-weight ratio; naturally corrosion-resistant. | Requires specialized tooling to prevent surface marring and cracking during tight-radius bending. |
| Stainless Steel (304/316) | Superior hygiene and caustic resistance. | High work-hardening rate; requires high-tonnage equipment and specialized laser gas mixes (Nitrogen). |
4. Quality Assurance and Integrated Assembly
For an OEM, a “finished” part is only valuable if it integrates seamlessly into the final assembly. High-quality fabrication must include:
- Hardware Integration: Precise installation of PEM fasteners, standoffs, and captive screws using automated insertion presses to ensure torque-out and push-out specifications are met.
- Surface Engineering: Implementation of industrial-grade finishes—such as Class 1 powder coating or chemical conversion coatings (Alodine/Anodizing)—to meet Salt Spray Test (SST) requirements and aesthetic standards.

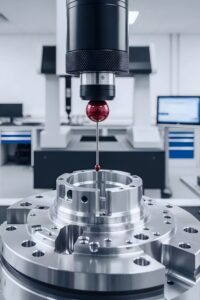

- Metrology: Utilization of 3D coordinate measuring machines (CMM) or laser scanners to verify first-article inspection (FAI) reports against the original CAD datasets.
5. FAQ: Technical Insights for Procurement
How does batch size affect the choice of tooling? For low-volume prototypes, universal stage tooling is used to minimize setup costs. For high-volume OEM contracts, dedicated hard tooling or custom jigs are engineered to increase stroke speed and ensure absolute repeatability over long production runs.
What is the impact of “Grain Direction” on bending? Bending “with the grain” can lead to cracking in certain high-strength alloys. Professional fabricators orient the nesting layouts so that critical bends occur transverse to the rolling direction, maximizing the structural integrity of the flange.
How is “Burr-free” quality achieved in high-precision parts? Beyond optimized laser parameters, mechanical deburring and graining processes (such as wide-belt sanding or vibratory tumbling) are employed to ensure edges meet safety and assembly requirements without manual secondary rework.
